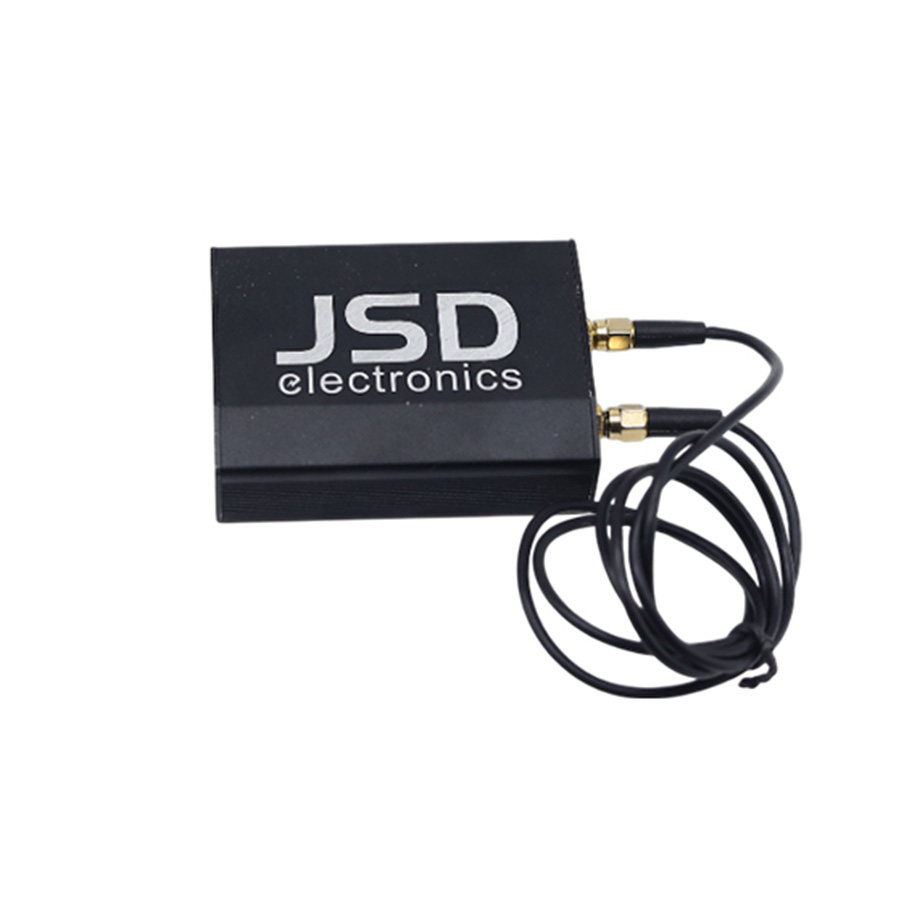

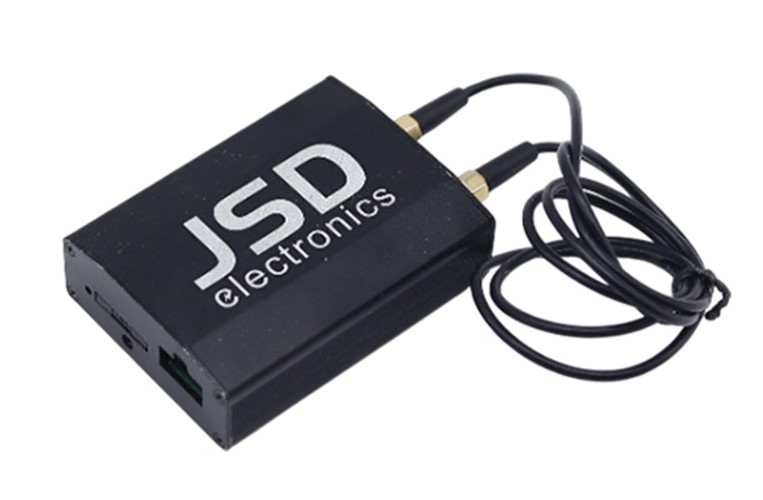

ASSET TRACKER

Asset Tracker is a 4G GPS-based device designed to monitor and track the location, status, and sometimes condition of valuable physical assets in real-time. Device have 4G and 2G connectivity and strong magnetic base. 10,000 mAh Long battery life.

Download Brochure
Get Price

FEATURES

Intelligent Power Management

The Intelligent Power Management feature in an asset tracker is designed to maximize battery life and ensure reliable operation, especially for trackers powered by internal batteries.

BDS+GPS+LBS positioning

Accurate location tracking in Real-time or periodically

Strong Magnetic Base

The Strong Magnetic Base feature in an asset tracker allows the device to be securely and discreetly mounted on metal surfaces without drilling or permanent installation.

Easy Installation & Configuration

A magnetic GPS tracker with easy installation and configuration is ideal for users who want quick, non-permanent deployment — especially for assets like trailers, containers, vehicles, or construction equipment

Long Battery Life

The 10,000 mAh battery feature in an asset tracker provides long-lasting, self-powered tracking for valuable assets that do not have their own power source—like trailers, containers, equipment, and cargo

Tamper Alert

The tamper alert feature in an asset tracker is a security function that detects and notifies the user if someone tries to remove, move, or interfere with the tracking device.

USE CASES

Asset protection and monitoring

Asset tracking is the methodical approach to monitoring and managing physical assets, from equipment and vehicles to tools and inventory. Utilizing various technologies, asset tracking systems collect data regarding the location, status, and condition of assets, providing real-time insights that help businesses optimize their operations

Logistics & Supply Chain Management

Asset tracker devices enhance logistics and supply chain management by providing real-time location and condition data, improving security, optimizing resource use, and increasing visibility throughout the supply chain.

Rental & Leasing Businesses

Asset trackers in rental and leasing businesses help protect assets, optimize usage, improve maintenance scheduling, and enhance customer management — ultimately reducing losses and increasing profitability.

Network

2G + 4G

Frequency

2G- 850/900/1800/1900 MHz



4G- FDD: B1/B3/B5/B7/B8/B20/4G- TDD:B34/B38/B39/B8/B40/B41

Memory Capacity

Storage of 3000 GPS data entries

Phase Error

RMSPE<5,PPE<20

Max Output

LTE-TDD Class3(23dBm+/-3dB)/ LTE-FDD Class3(23dBm+/- 3dB)/

Receive sensitivity

FDD-LTE s-96 dBm/TDD-LTEs-96dBm

Max Frequency Error

0.1 ppm

Color

Black



GPS Specifications

Frequency

BDS B1,1561.098 MHz, GPS L1,1575.42 MHz

GPS Channel

66

Location Accuracy

<5M

Tracking Sensitivity

(-165 dBm)

Acquisition Sensitivity

(-148 dBm)

TTFF

Avg hot start <3 Sec , Avg cold start <32 Sec

Dimension

L*w*H(90*64*35.4)

Working Voltage/current

3.7V/70mA

Operating temperature

(-20 C to -70 C)

Battery

10000 mAh

Charger

SVDC

Weight

242g
