GB429

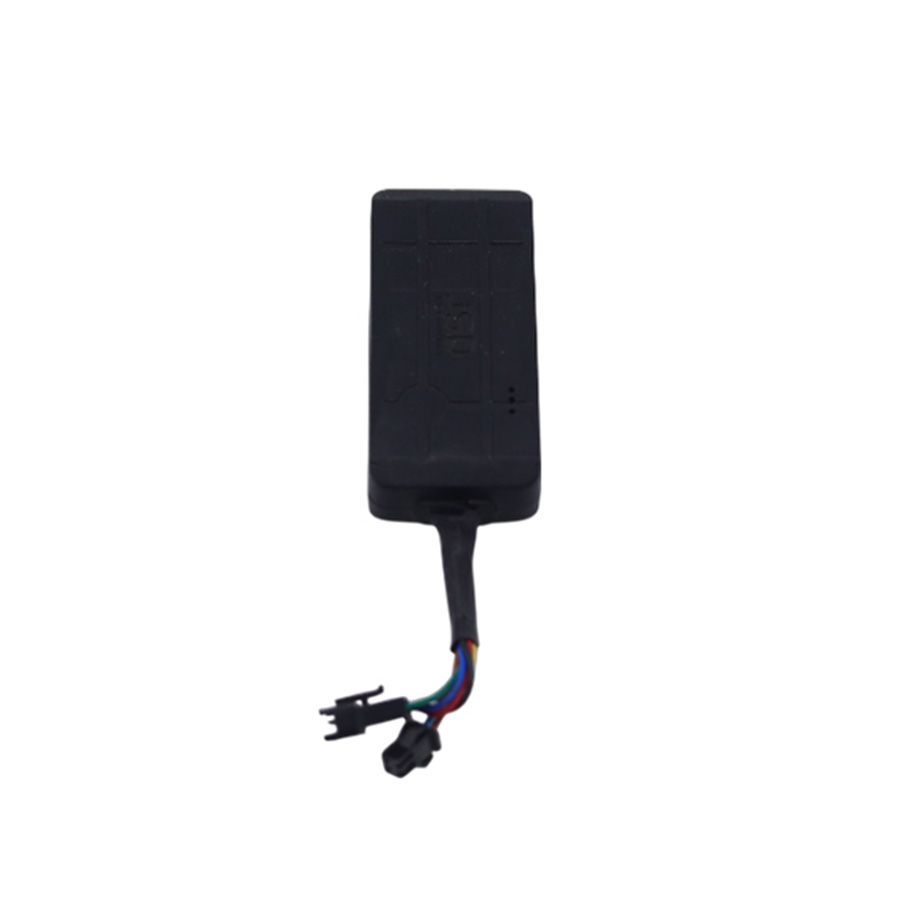

The GB449 is a 4G GPS Tracker for Electric Vehicles. 4G connectivity with IP67 rated design. Integrated with electric vehicles to provide location tracking, navigation, and data management tailored specifically for the unique needs of EVs
FEATURES
Power Input Range 9-100 V
Device is designed to operate safely and consistently when connected to any vehicle electrical system supplying voltage between 9V and 100 V DC (direct current)
4G Fallback 2G
The "4G fallback to 2G" feature in a GPS tracking device refers to the device's ability to switch between network types based on availability
Multiple Protection
Reverse Polarity, Overvoltage Surge, Short Circuit, Surge Current, Load Dump protection
Easy Installation & Configuration
Installing and configuring a device can be straightforward if done methodically. Below is a simplified, step-by-step guide to help ensure easy installation and configuration
Interface
GB429 device have multiple digital input/output port as below: One Ignition 2 Digital/Analog Input 1 Digital Out 1 RS232 & 1 CAN
Water and Dust resistance - IP67
IP67 is an Ingress Protection (IP) rating that indicates how well a device is protected against dust and water. It is commonly used in GPS trackers, smartphones, outdoor sensors, and rugged devices.
USE CASES
EV Fleet Management
GB429 is a powerful solution that helps companies monitor, optimize, and control electric vehicle (EV) fleets in real time. GPS trackers tailored for EVs provide critical data not only about location but also battery status, energy usage, driver behavior, and vehicle health
EV Commercial & Goods Transport Vehicles
GB429 plays a critical role in Electric Commercial & Goods Transport Vehicles, enabling smarter logistics, real-time visibility, and operational efficiency.
Battery Range Management
Battery Range Management in EVs via GPS is a crucial use case that combines real-time location data with battery status to help drivers and fleet managers optimize driving distance, prevent unexpected power loss, and plan charging stops efficiently.
ACCESSORIES
Panic Button
The panic button (also called an SOS button) is a mandatory safety feature designed to let passengers or drivers immediately raise an emergency alert.
B-Wire
The "B-Wire" refers to the Ignition Sense wire (also known as the Battery Ignition wire) in a vehicle tracking device. It is one of the mandatory wiring connections for AIS-140 certified GPS devices.
Screw
The term "screw" in the context of AIS 140 or vehicle telematics can refer to mounting hardware used to secure the GPS device or accessories.
S No. | FEATURE | SPECIFICATIONS |
1 | POWER SUPPLY | 9-100V DC |
  2 |   NETWORK | 4G Fallback 2G LTE Cat1 LTE-FDD – B1/B3/B5/B7/B8/B20/B28 LTE-TDD – B38/B40/B41 GSM  –   850/900/1800/1900 MHz |
 3 |  DATA RATE | LTE-FDD: 10 Mbps (DL) /5 Mbps (UL) LTE-TDD: 8.96 Mbps (DL) /3.1 Mbps (UL) GPRS:  max. 85.6 kbps (downlink/uplink) |
 4 |  GNSS SENSITIVITY | Acquisition: -147 dBm Tracking: -166 dBm Reacquisition: -160 dBm |
  5 |   GNSS ACQUISITION | TTFF @ -130dBm Cold Start: 30 s Warm Start: 28 s Hot Start: 1s |
  6 |   GNSS RECEIVING BANDS | GPS L1 C/A GLONASS L1 Galileo E1 BDS B1I & B1C QZSS L1 C/A |
7 | HORIZONTAL POSITION ACCURACY | Autonomous: 1.5 m |
8 | COMMUNICATION | TCP/IP, HTTP, SMS |
9 | ACCELEROMETER | 3 Axis Motion Sensing |
10 | INTERNAL BATTERY | 3.7 V Li-Poly, 50mAh |
11 | ANTENNA | High Gain Inbuilt Antennas for GSM & GNSS |
12 | LEDs | 3 x LED’s (Power, GPS, Network) |
13 | DEVICE WORKING MODES | Active mode & Sleep mode |
14 | MEMORY | 64Mb |
15 | HOUSING | IP67 |
16 | SIM TYPE | Nano SIM |
17 | OPERATING TEMPERATURE | -20°C to 85°C |
18 | STORAGE TEMPERATURE | -40°C to 85°C |
19 | PROTECTIONS | Reverse Polarity, Overvoltage Surge, Short Circuit, Surge Current, Load Dump protection |
20 | CONFIGURATION | Web Based Configurator, SMS |
21 | CURRENT CONSUMPTION | ACTIVE MODE : < 50 mA SLEEP MODE : <10 mA |
22 | SOFTWARE FEATURES | FOTA, Odometer, Turn Detection, GPS Drift Control, Driving Behavior |
23 | CONNECTOR | 10 Wire |
   24 |   INTERFACE | 1 x Ignition 2 x Digital/Analog Input 1 x Digital Out 1 x RS232 1 x CAN 2.0 |
