MDVR
MDVR stands for Mobile Digital Video Recorder.
It’s a specialized video recording system designed for use in vehicles such as buses, trucks, taxis, law enforcement vehicles, and delivery vans. Unlike standard DVRs used in fixed locations (like home security systems), MDVRs are built to withstand the vibrations, temperature changes, and power fluctuations that occur in mobile environments
FEATURES
Supports ADAS and DMS functions-
The Real-Time Video Streaming feature in video telematics allows fleet managers or control centers to view live video feeds from vehicle-mounted cameras — typically over 4G/5G or Wi-Fi networks.
Supports ADAS and DMS functions
MDVR systems now support ADAS (Advanced Driver Assistance System) and DMS (Driver Monitoring System) functions. These add powerful safety and driver behavior monitoring features on top of standard video recording.
Driver Behavior Monitoring
The Driver Behavior Monitoring feature in Video Telematics refers to the system's ability to observe, analyze, and report on how a driver operates a vehicle using video data combined with telematics (GPS, speed, acceleration, etc.).
HDD/SDD hard drives for storing live video
MDVR systems support HDD (Hard Disk Drive) or SSD (Solid State Drive) storage for storing live and recorded video. This is crucial for retaining high-resolution video over longer periods, especially when recording multiple channels in 1080p or higher.
Built-in GPS module for GPS/RNSS dual-mode positioning
Built-in GPS module for GPS/RNSS dual-mode positioning is important for accurate, real-time vehicle tracking and location-based video data
Ultra HD live video recording, the host supports 4 channels of 1080P & 8 Channels
high-performance MDVR system that supports Ultra HD live video recording with multi-channel inputs
USE CASES
Fleet and Logistics Management
Video telematics is transforming fleet and logistics management by providing real-time visibility into vehicle operations, enhancing safety, improving efficiency, and reducing operational costs.
Construction & Heavy Equipment Monitoring
Video telematics offers powerful benefits in construction and heavy equipment monitoring, especially in environments where safety, productivity, and asset security are critical
Public Transport and School Buses
Video telematics plays a critical role in enhancing safety, efficiency, and accountability in public transport and school bus operations

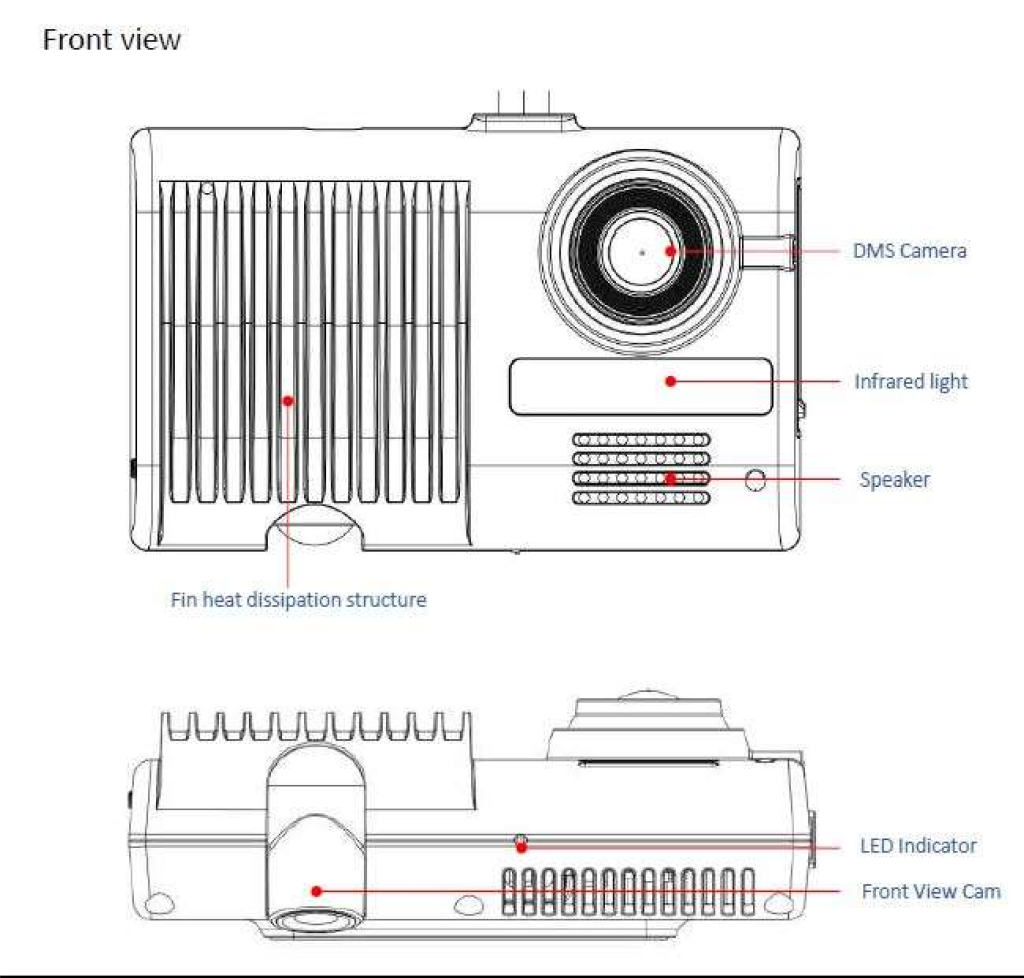

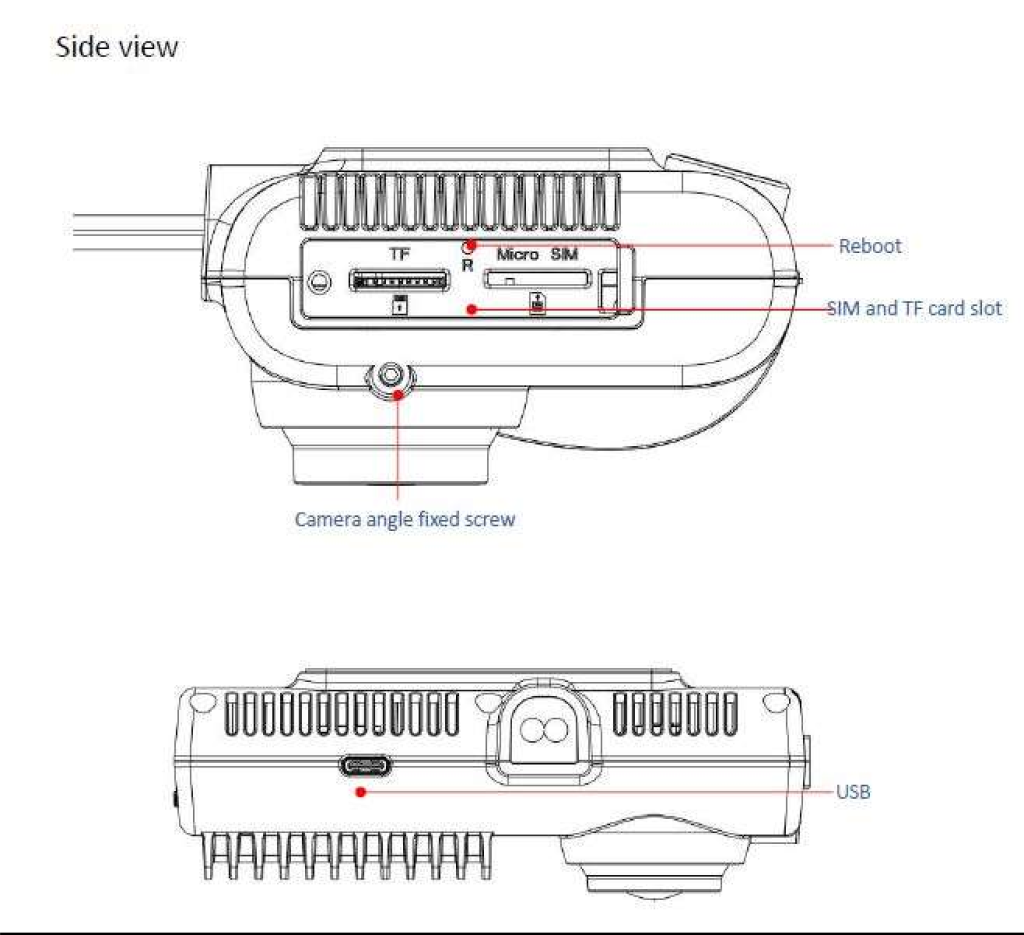

Device is an intelligent video terminal designed specifically for small and medium-sized vehicles. It has the advantages of small size, high integration, and simple installation. This product has 1.2T NPU computing power and can support ADAS and DMS functions at the same time. It can be used in taxis, online car-hailing and small and medium-sized logistics vehicles.
Basic Features | |
Power Input | DC: 9V-36V |
Operating Temperature | (-20 to -70 C) |
Power Consumption | Max power Consumption of 7W, Voltage of 12V/0.6A ,Voltage of 24V/0.3A, and standby Power consumption of 0.7W |
Size | 120*75*28MM |
Weight | 240g |
Â
Interface | |
Communication Interface | Type-C Interface |
Wire | Support Power cord |
Intercom Interface | Built-in Speakers, 1 Microphone |
Indicator light | 3 Color LED |
Wifi | Support |
TF Card | 512Gb |
SIM Card | Micro sim |
ACC-In | ACC, pick up the ACC line on the Vehicle |
PWR_IN+ | Power Cord ,Connect to the 9-36V Power supply |
GND | Ground Wire, Connect to the ground wire on the vehicle |
Panic Button | Optional |
Left-turn Signal | Connected to the vehicle’s left turn signal |
Right-turn Signal | Connected to the vehicle’s right turn signal |
GPS antenna | SMA Interface female connector |
RS232 | Optional |
Â
Network | |
Band | LTE-FDD: B1/2/3/4/5/7/8/28/B66; LTE:TDD: B38/40/41 , WCDMA: B1/2/5/8, GSM: B2/3/5/8 |
GNSS Type | GPS+BD |
Accuracy | <5m |
Audio/Video | |
Audio/Video Input | 1080P*1/25 Frame + 720P*1/25 Frame |
Video Format | PAL |
Compression Standard | H.264/H.265 |
Image Resolution | 1080P/720P/D1/HD1/CIF |
Video Quality | 1 to 8 levels are available,1 is the highest quality ,8 is the lowest |
Audio Compression | G711A,G726-32K,G726-40K |
Recording Mode | Synchronous recording of audio/video |
Video bit Rate | Full frame 4 Mbps,8 optional levels of picture quality |
Audio bit Rate | 8KB/s |
Storage medium | TF Card |
Video Query | it can be searched by channel and video type |
Local playback | playback by file |
